Reinforcement and Support Systems for Construction of Lainzer Tunnel in Vienna

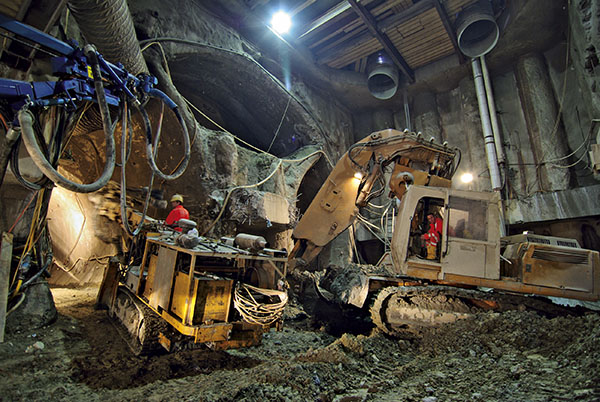

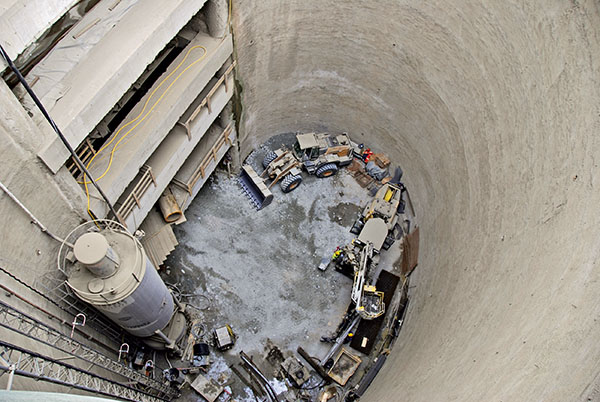

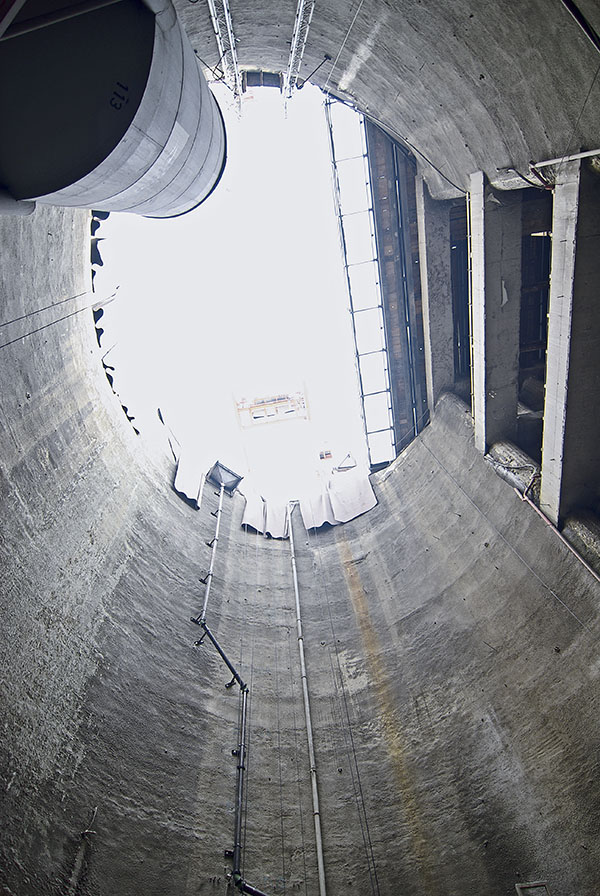

The Lainzer Tunnel is one of the most important projects now under construction as part of the development of the Austrian high-speed Railway System. This section in the west of Vienna will create the connection of the Western to the Southern Austrian Railway Section as well as to the “Donauländebahn”. In addition, the Western Railway Section will be linked to the central switchyard at Wien Kledering. When this project is completed, the single-track connection between the Southern and Western Austrian Railway shall be relieved. The projected railway section has a total length of 12.8 km, a 6.5 km portion of which is being constructed as a railway tunnel. Starting from three access shafts, the construction works on the double-track tunnel with twelve safety exits are being accomplished. The lot LT 31 - Maxing extends from the western area of the Lainzer Straße access shaft to the eastern connection points of the project area. Construction works on the lot LT 31 - Maxing started in the summer of 2005 with the erection of the site infrastructure, the sinking of the Lainzer Straße shaft started in January 2006. Since October 2006, the construction of the tunnel in eastern direction is in progress. The completion of the Lainzer Tunnel is planned for the end of 2011. The construction of the Lainzer Tunnel is greatly influenced by difficult ground conditions, as part of the tunnel is excavated in unconsolidated rock formations. To overcome the difficulties of groundwater handling during tunnel construction, the groundwater level is being lowered by intensive pumping through wells, controlled by a sophisticated monitoring system. DSI is the exclusive supplier of reinforcement and support systems for the LT 31 - Maxing construction site. Special products such as the AT - Drainage System are being used as accompanying arrangements for groundwater handling in critical areas. The accomplishment of the drainage drilling operations is supported by experienced technicians from the DSI supervision team. Lagging sheets and spiles are used for the reinforcement ahead of the tunnel face. To overcome challenging ground conditions, the particular IBI Self-Drilling Anchor System is being installed. The prime advantage of this anchor is the possibility to accomplish systematic re-injections via special post-grouting couplings. Thus, an optimum ground improvement is ensured.
Owner
ÖBB Infrastruktur Bau AG, Austria
General Contractor
ARGE LT 31 - Maxing: Alpine Mayreder Bau GmbH, Salzburg, Austria, Beton- und Monierbau Gesellschaft m.b.H., Innsbruck, Austria und HOCHTIEF Construction AG, Essen, Germany
Planning Agency
PGLT (Planungsgemeinschaft Lainzer Tunnel), Austria
Engineering
IGT Geotechnik & Tunnelbau GmbH, Salzburg, Austria

DSI Unit
ALWAG Tunnelausbau Gesellschaft m.b.H., Pasching/Linz, Austria
ALWAG Scope

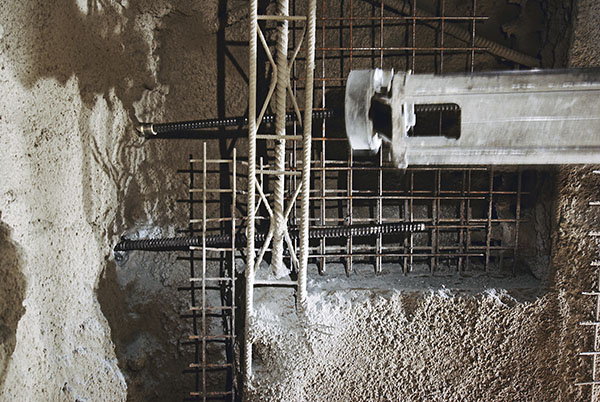

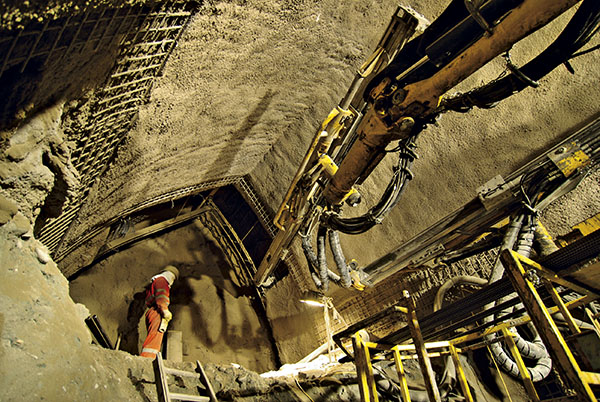

Among others: Supply of IBO R32 and R38 Hollow Bar Bolts, Lattice Girders, Lagging Sheets, Rebar Spiles, AT-Power Set self-drilling Tube Spiles, AT-76/DR and AT-118/DR Drainage System; rental of Rock Drilling Equipment and AT-Grout Injection Pumps; technical assistance
